High Voltage Automotive Electric Wire Cable Protection Silicone Ruber Braided Fiberglass Insulation Sleeves

FOB Reference Price:Get Latest Price
  • 500 - 999 Meters
    $0.80
  • 1000 - 4999 Meters
    $0.70
  • 5000 - 9999 Meters
    $0.55
  • >=10000 Meters
    $0.40
Lead Time:
Quantity(Meters) 1 - 5000 >5000
Est. Time(days) 3 Negotiable
Customization:
Customized packaging (Min. Order: 1000 Meters)
Graphic customization (Min. Order: 5000 Meters)

More

Customized logo (Min. Order: 5000 Meters) Less
Samples:
$0.01 /Meter | 1 Meter (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUNBOW
Model Number:
SB-SGS-70
Type:
Insulation Sleeving
Material:
Fiberglass
Rated Voltage:
600V
Application:
High Voltage, electric wire harness, home appliances, motors, transfoermers
Tensile Strength:
10.4Mpa
Product name:
Silicone Rubber braided fiberglass insulation sleeving
Working temperature:
-60-200 degree
Color:
white, other color available
breakdown voltage:
4.0KV
Fire resistant:
VW-1
Certification:
UL, ROHS, REACH
UL File number:
E333177
Size:
0.5-30.0mm
MOQ:
500pcs
Supply Ability
Supply Ability:
50000 Meter/Meters per Month Silicone Rubber braided fiberglass insulation sleeving
Packaging & Delivery
Packaging Details
Silicone Rubber braided fiberglass insulation sleeving.
Sunbow standard export package.
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Meters) 1 - 5000 >5000
Est. Time(days) 3 To be negotiated
Video Description
Product Description

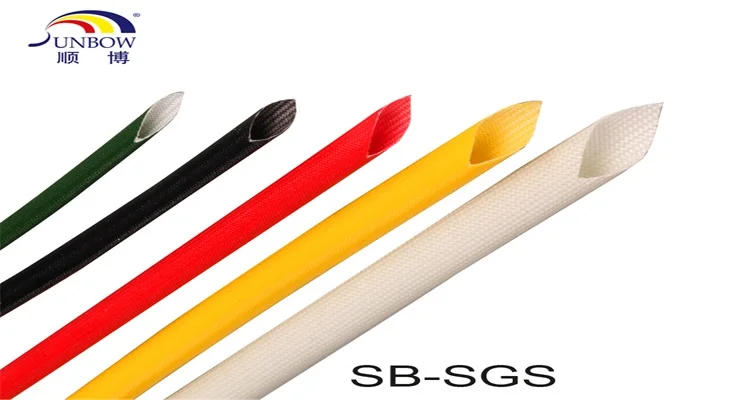

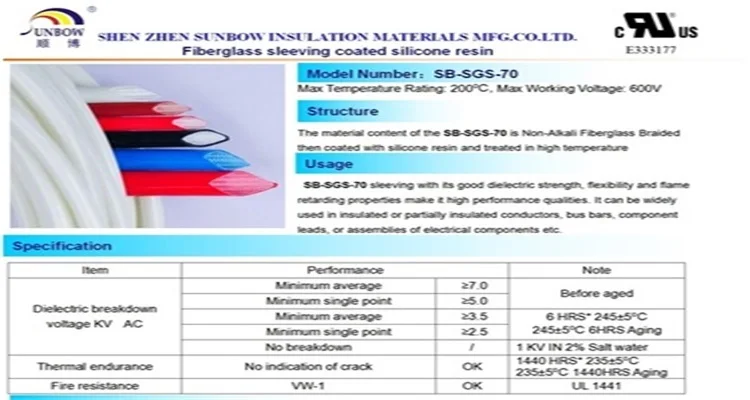

7KV Fiberglass sleeving coated silicone resin
Working temperature
-60~200ºC
Max Working Voltage
600V
Structure
It is braided by non-alkali fiberglass, then coated with silicone resin and treated in high temperature.
Item
Performance
Note
Dielectric breakdown
Voltage KV AC
Minimum average
≥7.0
Before aged
Minimum single point
≥5.0
Minimum average
≥3.5
6 HRS* 245±5ºC
245±5ºC 6HRS AGING
Minimum single point
≥2.5
Thermal endurance
No Indication of crack
OK
6 HRS* 245±5ºC
245±5ºC 6HRS AGING
Fire resistance
VW-1
OK
UL 1441
Dimension Range
0.5mm~30mm
Certifications
Why Choose Us
Company Introduction
 Shenzhen Sunbow Insulation Materials MFG.Co.,Ltd ,established in 2003,mainly engaged in the research,development,manufacture and sales of various insulation sleeving. Our company has passed ISO9001:2008 quality management system certification in Sep,2009,also we have passed TS16949 automotive system certification in Apr,2016. Our main products include fiberglass sleeving,silicone rubber tube,PVC tube,heat shrink tube,PTFE/FEP tube and so on.  All our fiberglass sleeving had been obtained the UL and CSA certification in 2010(Cert No:E333178--UZIQ2,VW-1for flame resistance requirement&E333177--UZFT2/8,300V,600V for thermal resistance requirement);Our heat shrink tube,silicone rubber tube,PTFE tube and PVC soft tube had been obtained UL certification in 2013(Cert.No.360625);PET Expandable sleeving had been obtained the UL certification in 2017(Cert. No.UZIQ2:E333178).Also all our products are in conformance with the European RoHS&REACH requirements. Website:www.sunbowgd.com
Service 1).Free samples for evaluation 2).Quick production&fast delivery 3).2 years quality guarantee 4).Prompt response&technical support 5).24 hours online service
