Mechanical protection polyimide insulation tube

FOB Reference Price:Get Latest Price
$0.10 - $8.00 / Meter | 500 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Sunbow
Model Number:
SB-PFT
Type:
Insulation Sleeving
Material:
polyimide
Rated Voltage:
600V
Application:
High Temperature, insulation and mechanical protection for soldering
Tensile Strength:
>130mpa or >110mpa
Product name:
Mechanical protection polyimide insulation tube
Color:
brown
Service temperature:
-269~+260 degree celsius
Melting point:
250~+265 degree celsius
Supply Ability
Supply Ability:
100000 Meter/Meters per Month Mechanical protection polyimide insulation tube
Packaging & Delivery
Packaging Details
sunbow standard package or customized
Mechanical protection polyimide insulation tube
Port
Shenzhen

Mechanical protection polyimide insulation tube

Product Description

GRADE:SB-PFT(Polyimide film tubing)

Operating temperature:-60°C~+220°C

DSC03930

STRUCTURE

Polyimide film tubing is manufactured by twisted polyimide film then adhesives by special glue. The glue

possesses similar chemical characteristics with polyester film.

DSC03931

USAGE

Main application range: insulation and mechanical protection for soldering, connection, wire harness,

transformer, motor, cable, heating element, capacitor,   telephone, electrical appliance etc.

DSC03935

PRODUCT CHARACTERISTICS

Dimension

Inside diameter2.0-65(mm),Thickness 0.05-1 (mm)

Length10-1000(mm)

Color

light yellow

Melting point

250°C-265°C

Service temperature

-269~260°C

Density

1.42+/-0.02

Tensile strength

Longitudinal >=130mpa; Horizontal>=110mpa

Water absorption

75% max after 24 hr immersion

Corrosive on Copper

Negligible

Solubility in acid, oil, paint, industrial solvents tec.

Undissolved

Antibacterial, anti corrosive

Excellent

Tenacity

Excellent

Cuticle intensity

35%

Resistance pressure

50HZ 115MV/min Not perforative

Visual

Smooth, No fleck & Eye winker

Surface resistivity:(200°C)

1.0x1013

Volume resistivity:(200°C)

3.8x1010

Dielectric coefficient:(50HZ)

3.5

Dielectric loss:(50HZ)

4X10-3

Flammability

Slow to self-extinguishing

Burning

resistance

Resistance characteristics

Resistance to abrasion, acids, immersion, mildew,

industrial solvent, mechanical destroy, Freon and

special liquids

Xylene extraction

<2%

Environment protection

No hurtful to human and environment





Note: Besides above dimension, we can manufacture other dimension upon request.



DSC03933

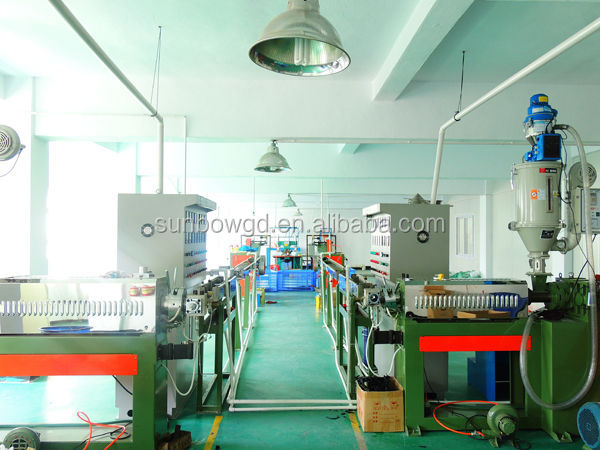

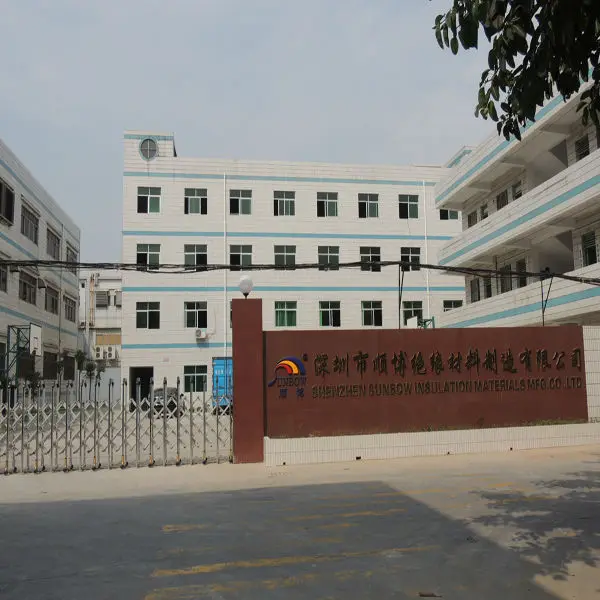

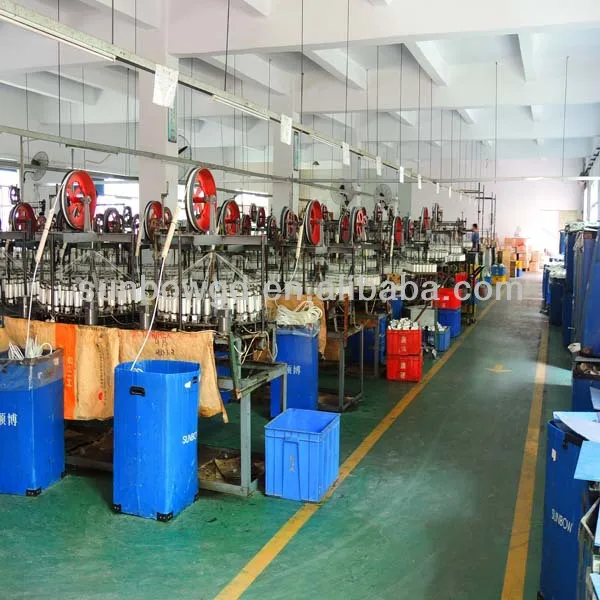

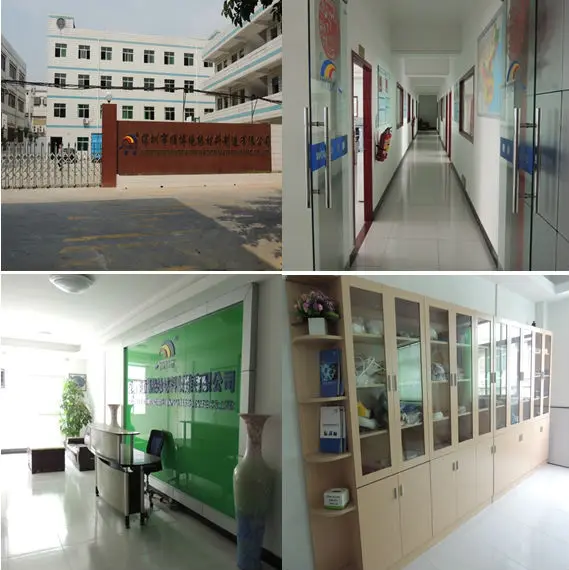

Company Information

  DSCN0057

pvc machine 21421

Catch8DF8


FAQ

Q : Are you a factory or trading company ?
A: We are a factory , can offer best quality product and reasonable price for you.


Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.


Q: What is your MOQ?
A: Normally,1000 Meter per color.


Q:What is your delivery time?Can we short it in 7 days or less?
A: 3 days for sample, 3-25 days for mass production(depend quantity).


Q: What is your payment terms?
A: T/T,Western Union


Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.


Q:How about your quality?
A: All of our products have obtained the UL and CSA certificates (Cert No:E333178--UZIQ2,VW-1&E333177--UZFT2/8 ,200C,600V).Try a small order, you will have your judgements!
